Wolfin Membrane Technical Data

Wolfin ProductApplication & Install

Technical Drawings

With waterproofing, it is essential to comply with the Australian Standards and meet the requirements outlined in the National Construction Code (NCC). In addition, carefully following the manufacturer’s specific instructions is vital to achieving a long-lasting and effective waterproofing system for your project.

At Projex Group, we encourage early-stage involvement in your project, as it allows our team to provide the most accurate advice and deliver a custom-designed Wolfin waterproofing system tailored to your specific needs at no extra cost.

Here are some typical technical drawings of the Wolfin Waterproofing System:

Roof Waterproofing
Balcony Waterproofing
Basement Tanking Waterproofing
System Components Drawings
Other Drawings:
Custom CAD Drawing for Wolfin Waterproofing System

Specifications

Technical Specifications & Design Support

At Projex Group, we don’t just supply products — we provide technical expertise backed by over 35 years of waterproofing experience in Australia. Our team works closely with architects, engineers, consultants and builders to develop project-specific waterproofing specifications that ensure performance, compliance, and long-term durability.

High-Level Technical Expertise

Our technical support includes:

  • Preparation of custom waterproofing specifications and concept drawings
  • Assistance with design development and detailing
  • Review and collaboration on project drawings
  • Compliance guidance in accordance with relevant Australian Standards
  • Performance-based system recommendations
  • Advice on complex detailing and challenging project conditions

Whether your project involves podium decks, basements, balconies, etc., our team ensures the specified system is suitable for the application and aligned with manufacturer requirements.

Custom Specification Documents

We create tailored specification documents that:

  • Clearly define scope and system requirements
  • Incorporate warranty provisions
  • Outline quality control and inspection requirements
  • Reduce ambiguity during tender and construction

Our goal is to help consultants and engineers produce clear, technically sound documentation that protects both design intent and long-term asset performance.

Collaborative Approach

We engage early in the design phase to:

  • Minimise risk
  • Improve constructability
  • Avoid common detailing failures
  • Support smooth transition from design to installation

With Projex Group, you gain access to a team that understands not only waterproofing products, but the practical realities of installation, compliance and lifecycle performance.

If you require specification support for your next project, our technical team is ready to assist.

Technical Data

Download Technical Details by clicking on the links below:

Membranes Thickness Roll Size Colour
Wolfin IB
Membrane		 1.5mm 15m x 1620mm Black / Light Grey
Wolfin GWSK
Membrane
(adhesive-backed
reinforced)		 2.3mm 15m x 1050mm Black / Light Grey
Accessories
Wolfin AF6 Cast-in Reglet N/A 25m Black

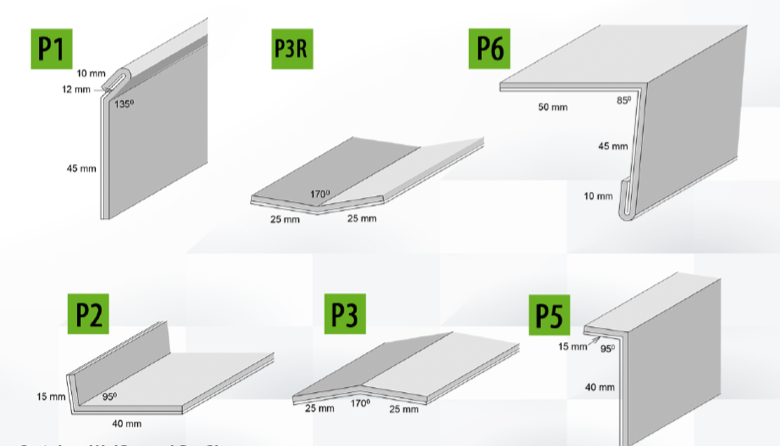

Wolfinsteel Profiles Dimensions Colour
P1 45mm x 12mm Black / Light Grey
P2 40mm x 15mm Black / Light Grey
P3 25mm x 25mm Black / Light Grey
P3R 25mm x 25mm Black / Light Grey
P5 40mm x 15mm Black / Light Grey
P6 50mm x 45mm Black / Light Grey
**Wolfinsteel Profiles are also available in Stainless Steel.
**Non-Standard Wolfinsteel Profiles are made to order

Certifications & Standards

At Projex Group, we are committed to providing waterproofing solutions that meet the highest international and local standards. Wolfin membranes have been independently tested and certified across Europe, the UK, Germany, and Australia, ensuring compliance with strict performance, fire safety, and environmental requirements. In addition, Wolfin carries Environmental Product Declarations (EPD) and meets sustainability benchmarks such as DGNB, BNB, and LEED v4. These certifications give our partners, architects, and engineers the confidence that Wolfin systems deliver proven quality, durability, and compliance for projects of every scale.
Wolfin Membranes – Certifications & Approvals

Australian Standards (NATA Certified)

  • AS 4654.1 – Waterproofing membranes for external above-ground use
  • AS 4858 – Waterproofing membranes for internal wet area applications (Wolfin IB specific)

Wolfin GWSK complies to AS 4654.1-2012 and Wolfin IB complies to AS 4654.1-2012 & AS 4858.
Both membrane systems have been NATA tested. Please find below the NATA summary report for both Wolfin Ib and Wolfin GWSK. If you wish to receive a copy of the full reports, please do not hesitate to contact us.

European Standards (EN / CE Marking)

  • EN 13956 – Flexible sheets for waterproofing (roofing)
  • EN 13967 – Flexible sheets for waterproofing (damp proofing, including basement tanking)
  • EN 13501-1 (Class E) – Fire classification of construction products
  • EN 13501-5 (BROOF (t1)) – External fire performance (roof structures)
  • CEN/TS 1187 – Test methods for external fire exposure to roofs
  • EN 13948 (FLL Test) – Root penetration resistance

In accordance with the method of testing resistance to root damage to flexible sheets and coatings for roof planting, a two years lasting test was carried out with the sheet WOLFIN IB. The sheet WOLFIN IB (surface and joints) did not show any perforations or penetrations caused by roots and rhizomes after the 2 year test period.

See full report here:

German Approvals

  • DIN Standards – Compliance with German requirements for roof waterproofing
  • General Building Supervision Approval (AbZ, WHG / LAU plants) – For use in sealing constructions in plants for storage, filling, and handling water-polluting substances (Wolfin IB specific)

 UK Approvals

  • BBA Approval – British Board of Agrément certification

 Sustainability & Environmental Declarations

  • Environmental Product Declaration (EPD) – Registered with IBU, Oekobaudat, and DGNB Navigator
  • Suitable for DGNB, BNB, and LEED v4 certified projects
  • REACH Compliant – Free of substances of very high concern (SVHC)
  • Heavy metals (lead, cadmium, organotin) < 0.1%
  • Phthalates (SVHC plasticisers) < 0.1%
  • VOC content < 0.1%
  • Thermally recyclable

Warranty

  • All Wolfin membrane installations are guaranteed 15 years by a Single Point Warranty on both materials & workmanship. Warranties are issued in favour of the building/structure owner and every Wolfin membrane installation is inspected and signed off by Projex Group/Wolfin Membrane Australia.



  • At Projex, we do things differently! We guarantee the work of our Licensed Wolfin Installers for a period of 15 years as well as offering the “standard” warranty on the materials. Our premium Wolfin polyester PVC waterproofing membrane offers strictly controlled detailed applications, meticulous QA inspections, and peace of mind that it is installed correctly. This is achieved with the combination of our accredited, trained, certified Wolfin contractors and the close relationship we share with all our installers. This enable us to keep offering a single point warranty for both labour and material on all Wolfin projects.



  • Projex Group is a well established company, that have been supplying the Australian market with Wolfin waterproofing membrane since the late 1980’s. The warranty is issued by us (the supplier) and not the contractors.  It is a single point warranty, so in case of any problems or concerns, you simply have to contact Projex Group for any assistance.
Flat Roof Waterproofing Wolfin 30 years old in excellent condition
