Application & Installation of WS Steel Sleeves

Where can Steel Sleeves be used?


  • Bund Walls
  • Fuel Tanks

Steel Sleeves are used to create a penetration when hydrocarbons, high temperatures or aggressive chemicals are involved. They are also used when a fire rating is required.

Installation of WS Steel Wall Sleeves

Steel Sleeves are easy to install. No special tools or equipment is required for installations. Here are the 5 steps to follow when installing Steel Sleeves:


Step 1: Place Steel Sleeve into formwork

Step 2: Pour concrete

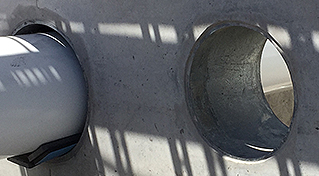

Step 3: When concrete has cured, remove the formwork and the penetration is ready to use

Step 4: Place carrier pipe centered to the sleeve

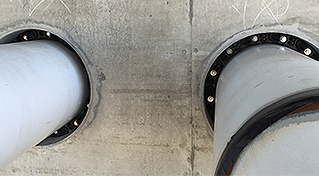

Step 5: Install the Link-Seal to seal the penetration
